Multiple Zone Safety Systems

VSS-4-MZ

January 01, 2020

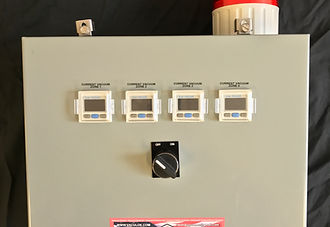

The safety system is self-enclosed into one (1) vacuum sensor box that has a two (2) wire connection to interface to the customer's machine tool E-Stop.  The unit comes complete with four (4) adjustable low vacuum safety sensors fastened to a NEMA 12/13 mountable enclosure with a 1/4" hose barb to tie into each the vacuum line (near the vacuum chuck) and operates on 115V single phase power.  Recommended for a four (4) zone vacuum chuck.

VSS-5-MZ

January 01, 2020



The safety system is self-enclosed into one (1) vacuum sensor box that has a two (2) wire connection to interface to the customer's machine tool E-Stop.  The unit comes complete with five (5) adjustable low vacuum safety sensors fastened to a NEMA 12/13 mountable enclosure with a 1/4" hose barb to tie into each the vacuum line (near the vacuum chuck) and operates on 115V single phase power.  Recommended for a five (5) zone vacuum chuck.

VSS-6-MZ

January 01, 2020



The safety system will come complete in one (1) NEMA 12/13 box that have a two (2) wire connection to interface to the customer's machine tool E-Stop.  The unit comes complete with six (6) adjustable low vacuum safety sensors fastened to NEMA 12/13 mountable enclosures with a 1/4" hose barb to tie into the vacuum line (near the vacuum chuck).  Recommended for a six (6) zone vacuum chuck.

VSS-7-MZ

January 01, 2020



The safety system will come complete in one (1) NEMA 12/13 box that have a two (2) wire connection to interface to the customer's machine tool E-Stop.  The unit comes complete with seven (7) adjustable low vacuum safety sensors fastened to NEMA 12/13 mountable enclosures with a 1/4" hose barb to tie into the vacuum line (near the vacuum chuck).  Recommended for a seven (7) zone vacuum chuck.
