Automatic Coolant

Return Systems

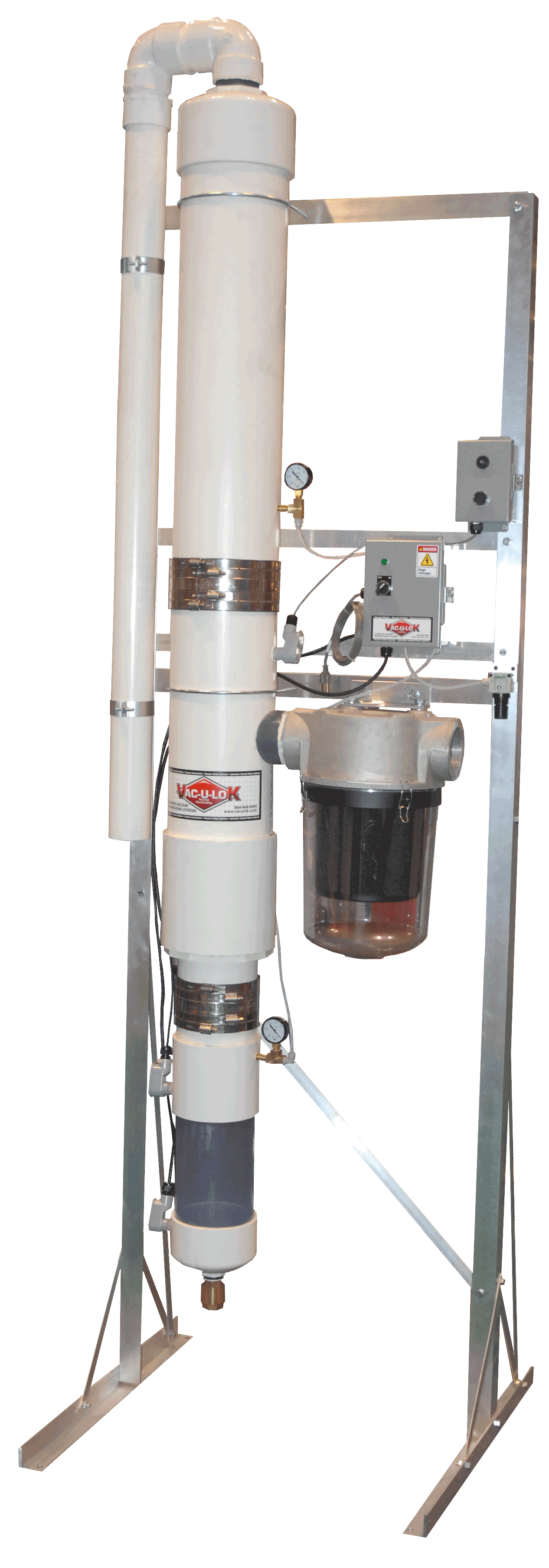

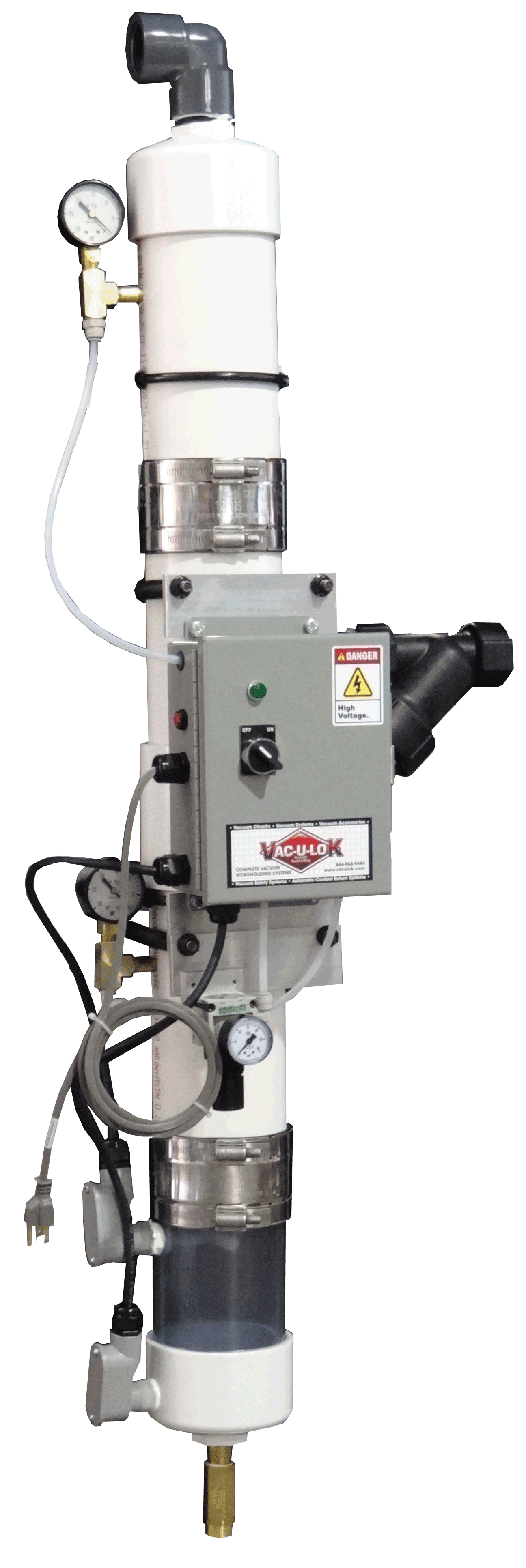

Vac-U-Lok's Heavy-Duty Automatic Coolant Return System.
 These unit are designed to automatically collect and drain flood coolant while still in operation (under vacuum).  The coolant initially enters the top chamber and drains to the bottom chamber.  Once the coolant reaches a switch in the bottom chamber, the unit automatically drains with approximately ten (10) pounds of air pressure applied to it (the customer needs to supply an air pressure source and an air fitting for the heavy-duty unit).

ACRS-1HD

  • Half (1/2) gallon storage area with sight glass


  • The unit operates on 110VAC


  • Mounts near the coolant tray of any type of machine


  • Pairs with Vac-U-Lok's SHDP-7 and SHDP-20

ACRS-2HD-2NPT

  • One-and-a-half
    (1-1/2) gallon storage area with sight glass


  • The unit operates on 110VAC


  • Mounts near the coolant tray of any type of machine


  • Pairs with Vac-U-Lok's SHDP-45 and SHDP-70

ACRS-3HD-3NPT

  • One-and-a-half
    (1-1/2) gallon storage area with sight glass


  • The unit operates on 110VAC


  • Mounts near the coolant tray of any type of machine


  • Pairs with Vac-U-Lok's SHDP-117 and SHDP-180

ACRS-Dual-3HD-3NPT

  • Dual One-and-a-half
    (1-1/2) gallon storage area with sight glass


  • The unit operates on 110VAC


  • Pairs with Vac-U-Lok's SHDP-117, SHDP-180, SHDP-234, SHDP-360 and SHDP-540

Please reference Vac-U-Lok's Warranty Information page regarding the specific details / conditions that make up your product warranty on our systems.  We strongly encourage our customers to develop a regular maintenance program for their investments.  Keeping your system well-oiled and filters checked on a regular basis insures the the system will be making money for you when you need it most.  Routine inspections, oil, and filter changes are all important in maintaining the life span of your system to maximize the return on your investment.  While our systems are highly reliable and low-maintenance, a consistent and thorough PM plan on the part of the customer will prevent the chance of a system going down. Please note that Vac-U-Lok is the sole determiner of maintenance issues covered under your warranty.
